*Design features: IP66/IP67 protection level of the whole machine is waterproof and dustproof/fanless design, energy-saving and mute/power-on/start-up/high and low temperature resistance/corrosion resistance/durability, etc.
*15.6-inch 16:9 widescreen, 1920*1080 high resolution, high-definition A-standard perfect IPS LCD display;
*Use capacitive technology touch screen, support ten-point touch, wear resistance, long service life, low maintenance cost, high positioning accuracy (optional resistive touch screen or no touch);
*The whole machine is designed in accordance with the NEMA4/IP66 waterproof and dustproof rating, and the interface sockets all adopt the aviation plug with the IP67 protection level; the chassis is made of durable, corrosion-resistant, anti-shock and vibration-resistant aluminum flat plate and sheet metal steel structure;
*DC 12V power input (optional 9-30V wide voltage input), equipped with world-renowned brand “Huntkey” adapter;
*Rich IO interfaces, free to connect to external devices:
2*RS232+4*USB+2*LAN+1*HDMI+1*DC IN;
*Operating system: Support MS series Win 7, Win8 and Linux and other mainstream operating systems.
Parameters of All in one Panel PC:Â
| Host parameters | CPU processor | Integrated Bay Trail-D Celeron J1900 2.0GHz (maximum turbo frequency 2.41GHz) |
| Graphics card | Integrated Intel HD Graphics core graphics | |
| RAM | DDR3 2GB 1066/1333MHz (Maximum support 8GB) | |
| hard disk | mSATA 32G SSD hard disk (optional HDD hard disk or other capacity SSD hard disk) | |
| Network port LAN | Onboard 2 RJ45 Intel I211AT 10/100/1000Mbps | |
| Structural parameters | Special performance | IP66 protection level of the whole machine, fanless design, corrosion resistance, high temperature resistance, anti-interference, high stability |
| Structure material | Whole machine metal shell, aluminum alloy panel + steel box body + aluminum alloy back cover cooling plate | |
| Case color | Black/gray/silver | |
| Installation method | Wall-mounted, desktop | |
| Display parameters | Size | 15.6-inch 16:9 wide IPS screen |
| Resolution | 1920*1080 | |
| Brightness | 300cd/ | |
| Other parameters | Contrast ratio: 700:1 (Typ.); full viewing angle: 89/89/89/89; | |
| Touch parameter | Touch type | Capacitive touch screen, support 10-point touch (optional resistive touch screen) |
| Material and hardness | G+G material structure; surface hardness>=6H; | |
| Other parameters | Service life: >=50 million clicks; light transmittance: >=85% | |
| Interface parameters | I/O interface | 2*COM, 4*USB, 2*LAN, 1*HDMI, 1*DC IN |
| Optional interface | Optional RS485, WIFI, 4G, VGA | |
| Environmental parameters | Temperature | Working temperature: 0ºC~60ºC; storage temperature: -20ºC~60ºC |
| Relative humidity | 10~90%, no condensation | |
| Product parameter | Physical dimension | 391*253*51mm |
| Installation size | 75x75mm/100*100mm (VESA wall-mounted/standing) | |
| Weight | Net weight: 4.5KG | |
| Power support | DC power supply | DC 12V power input |
| Shipping accessories | Standard | Huntkey adaptation + matching aviation plug line |
| Operating system | Support MS series win 7, win8 and Linux and other mainstream operating systems | |
| Warranty | 12 months (longer warranty time optional) warranty |

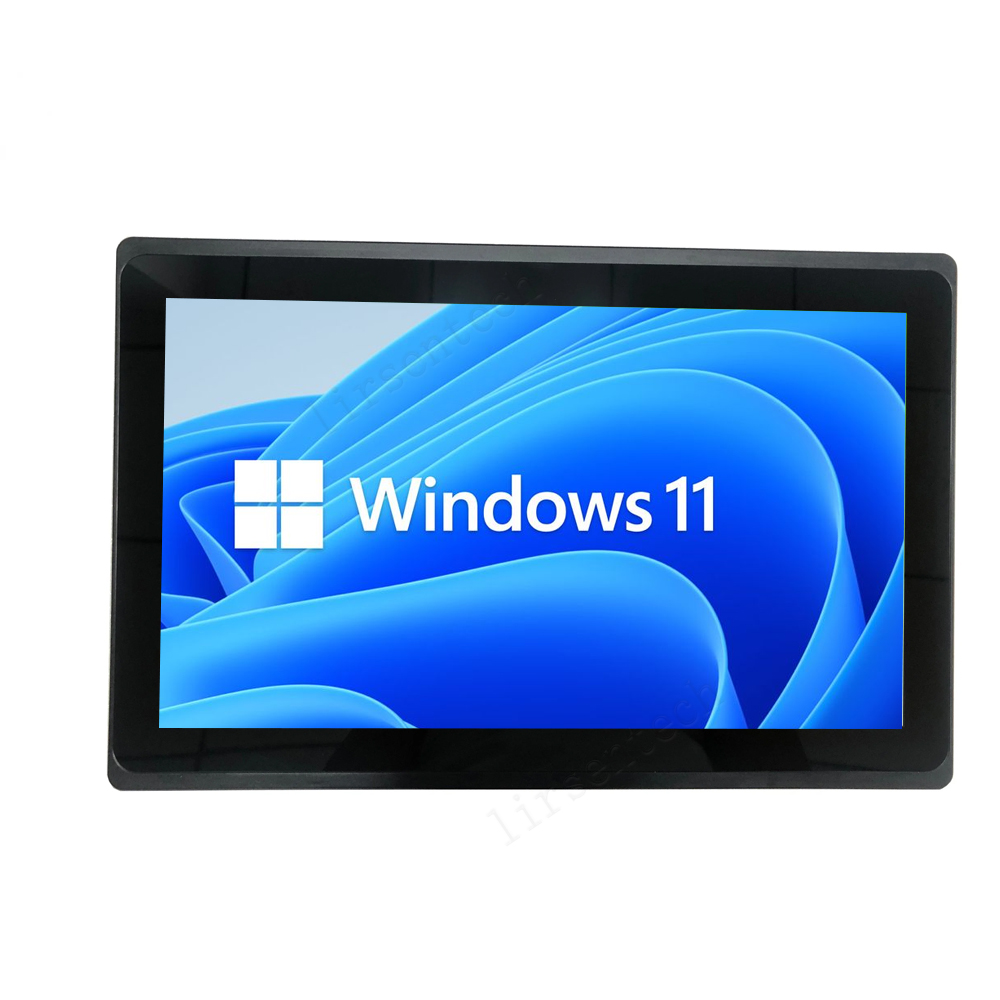

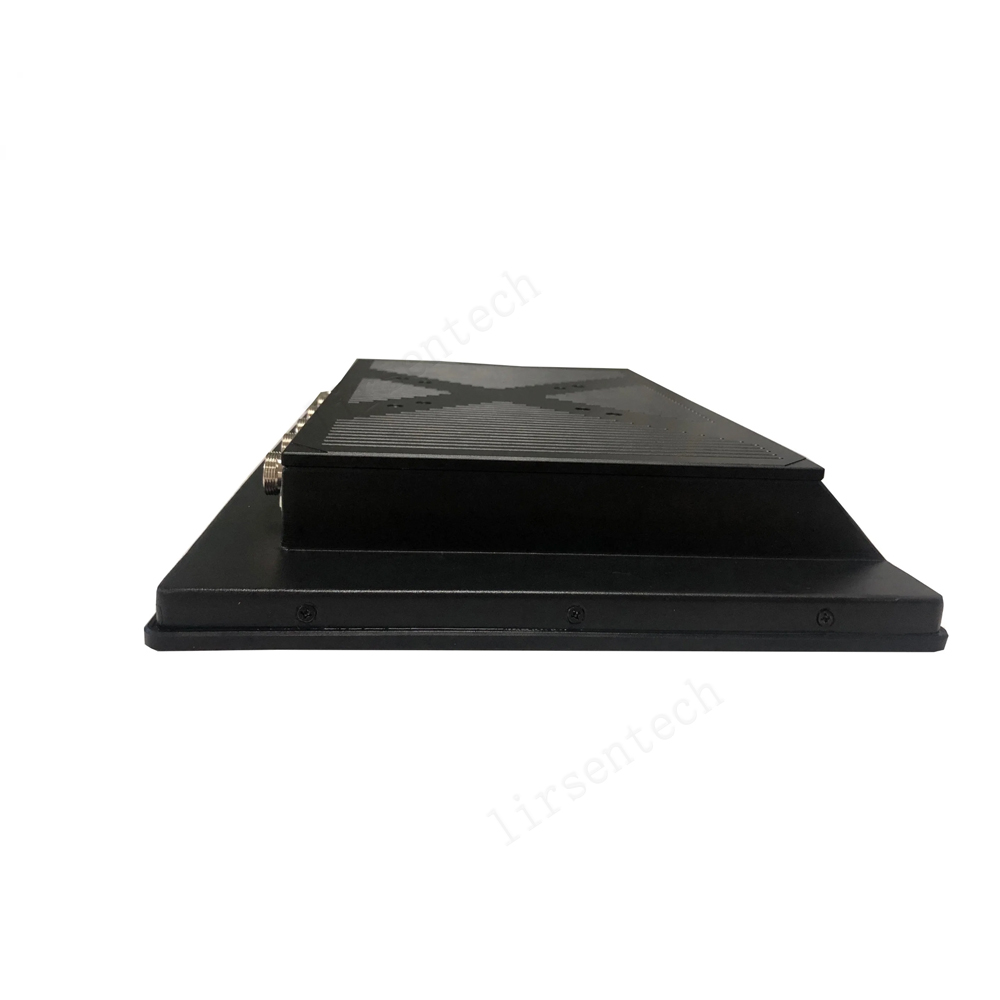

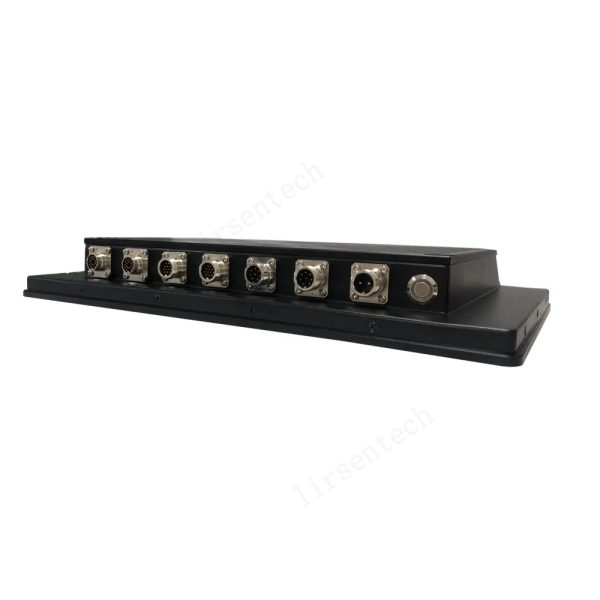

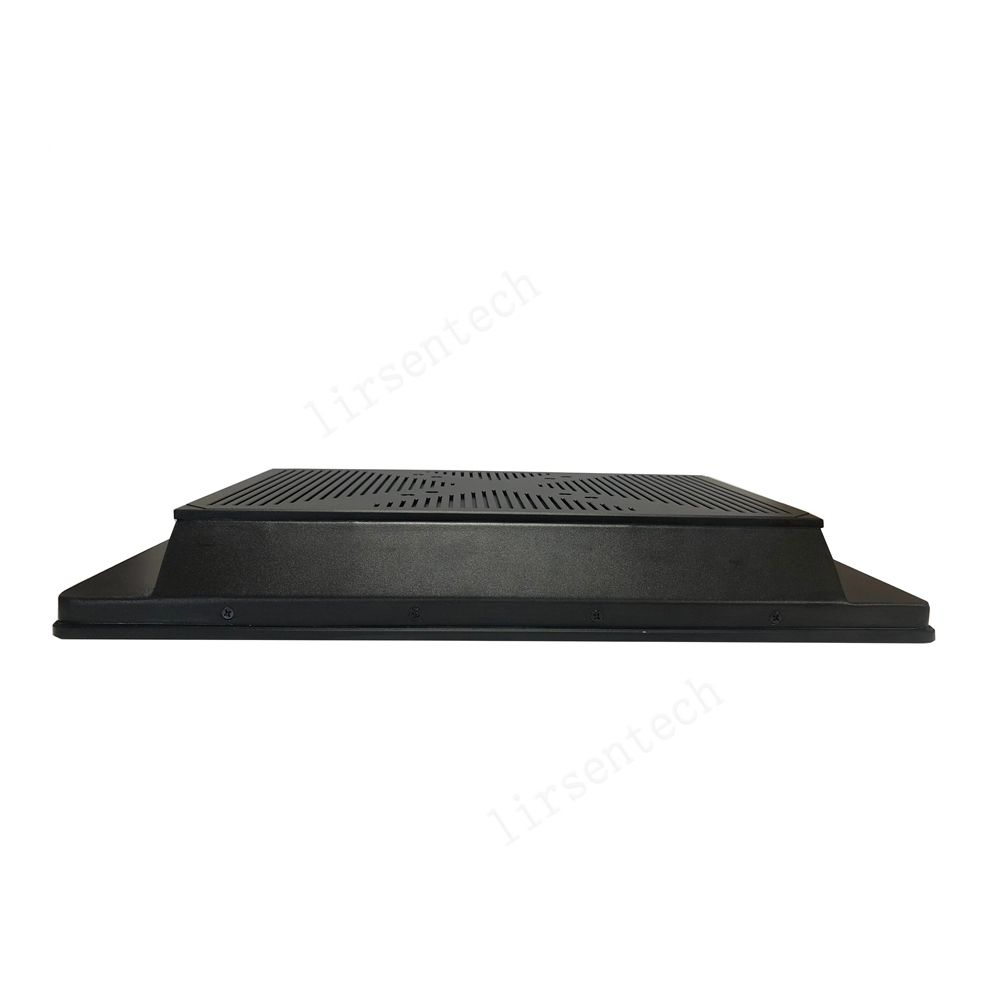

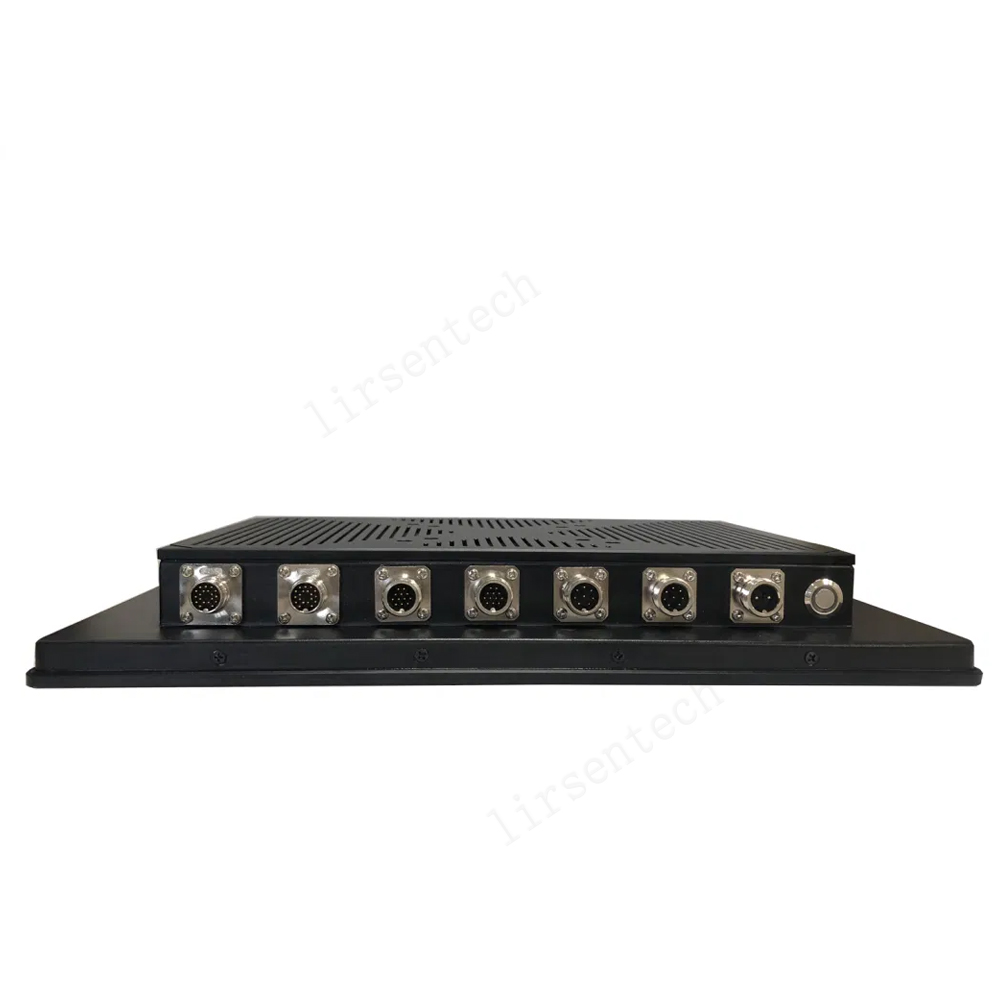

Real picture of the Touch Panel PC:
Application of the Industrial Panel PC:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller’s permit.
FAQ:
Q: whether your industrial panel pc support the OEM / ODM?
A: Â Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: 7″,8″, 10.1″, 10.4″,12″, 13.3″ 15″, 15.6″, 17″ 19″ 21.5″ 22″ 24″ 32″ and wide screen the same zise. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all panel pc and monitor are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee !
