Product Description
*Using industrial-grade five-wire resistive touch screen + Taiwan EETI control scheme, stable performance, high precision, and not afraid of dust, water, oil, etc., to adapt to a variety of harsh environments (optional multi-point capacitive touch screen or infrared touch screen);

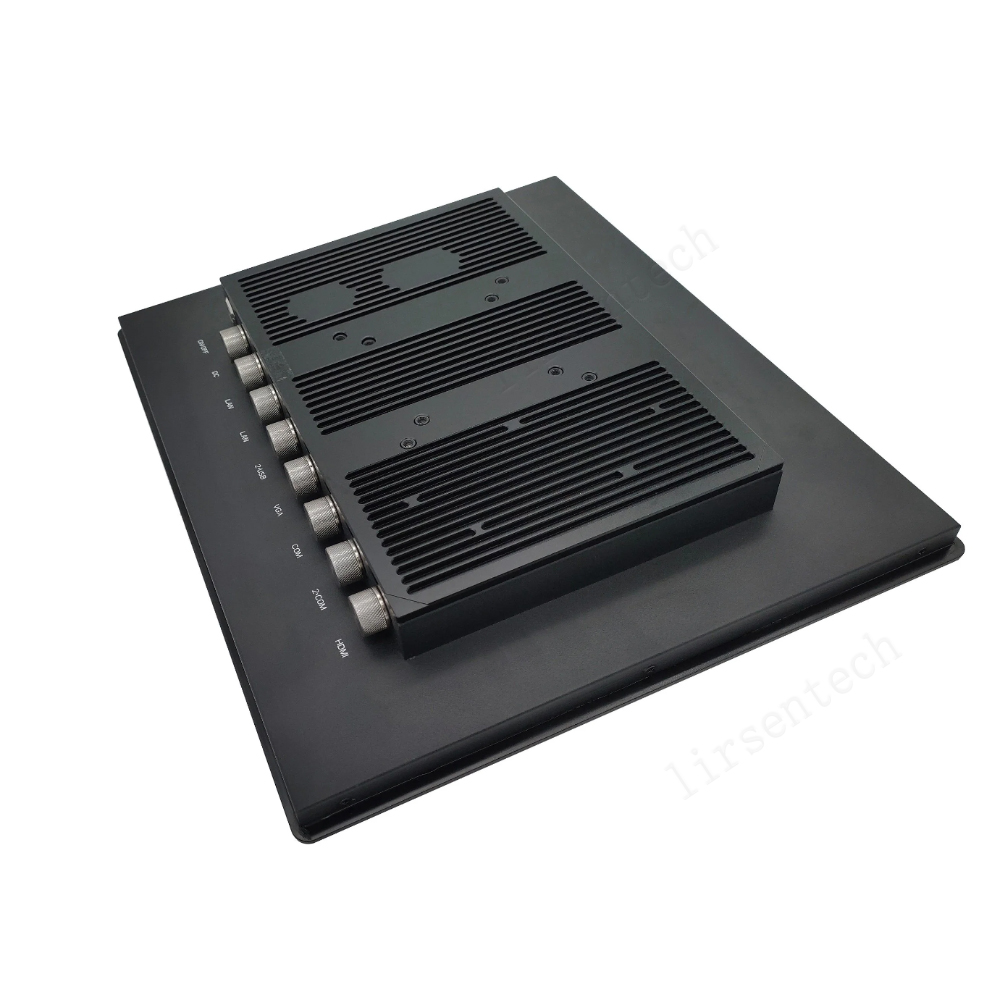

*The whole machine adopts NEMA4/IP65 dustproof and waterproof level design, and all the interface sockets adopt aviation plug; the case adopts the sturdy and durable, corrosion-resistant and wear-resistant, impact and vibration resistant aluminum-magnesium alloy panel + sheet metal steel structure cabinet + aluminum-magnesium alloy back cover heat sink;
*DC 12V power input (optional DC 24V or DC 9-36V wide voltage input);

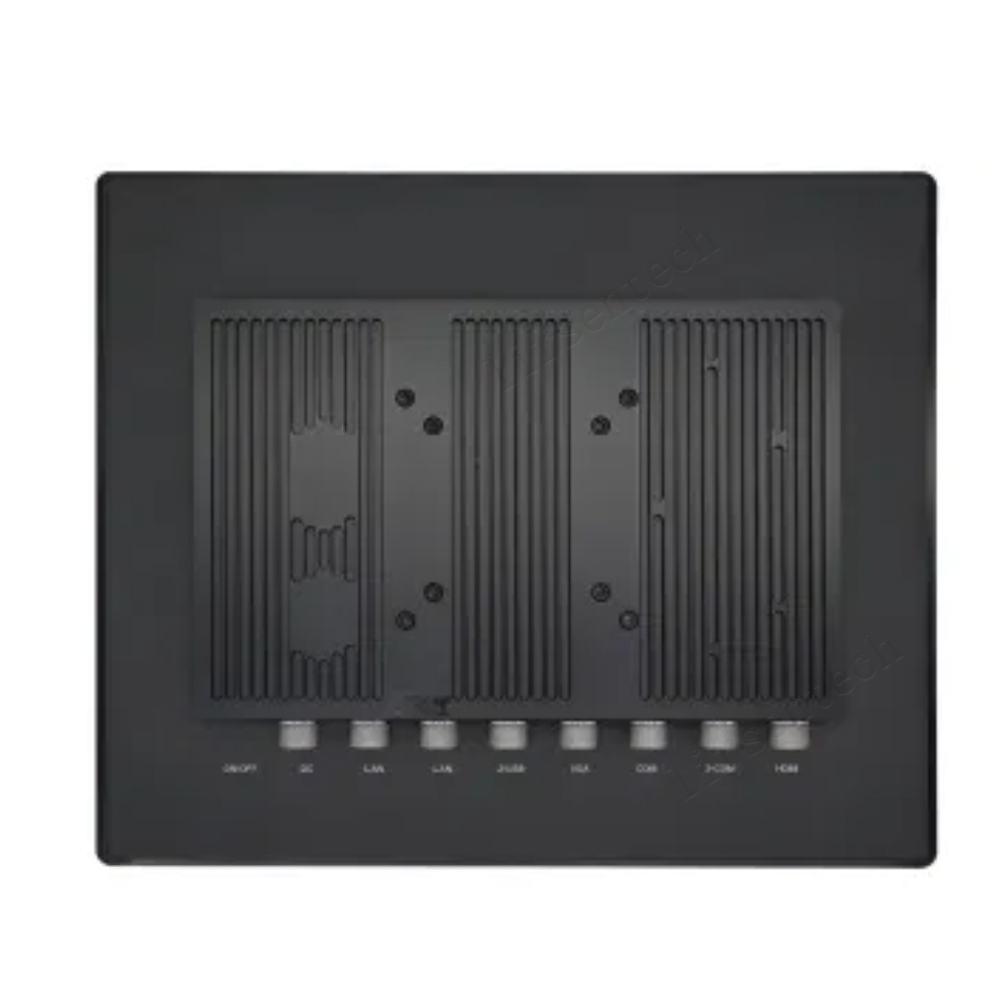

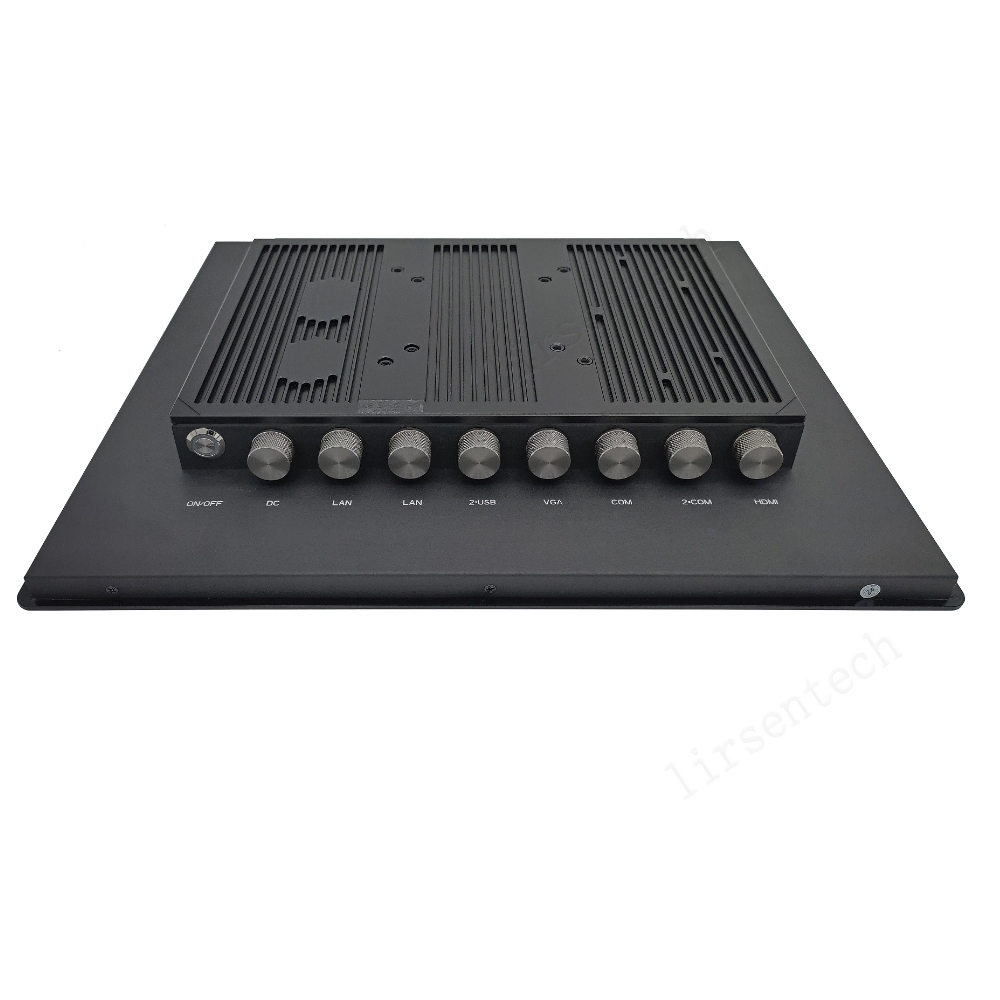

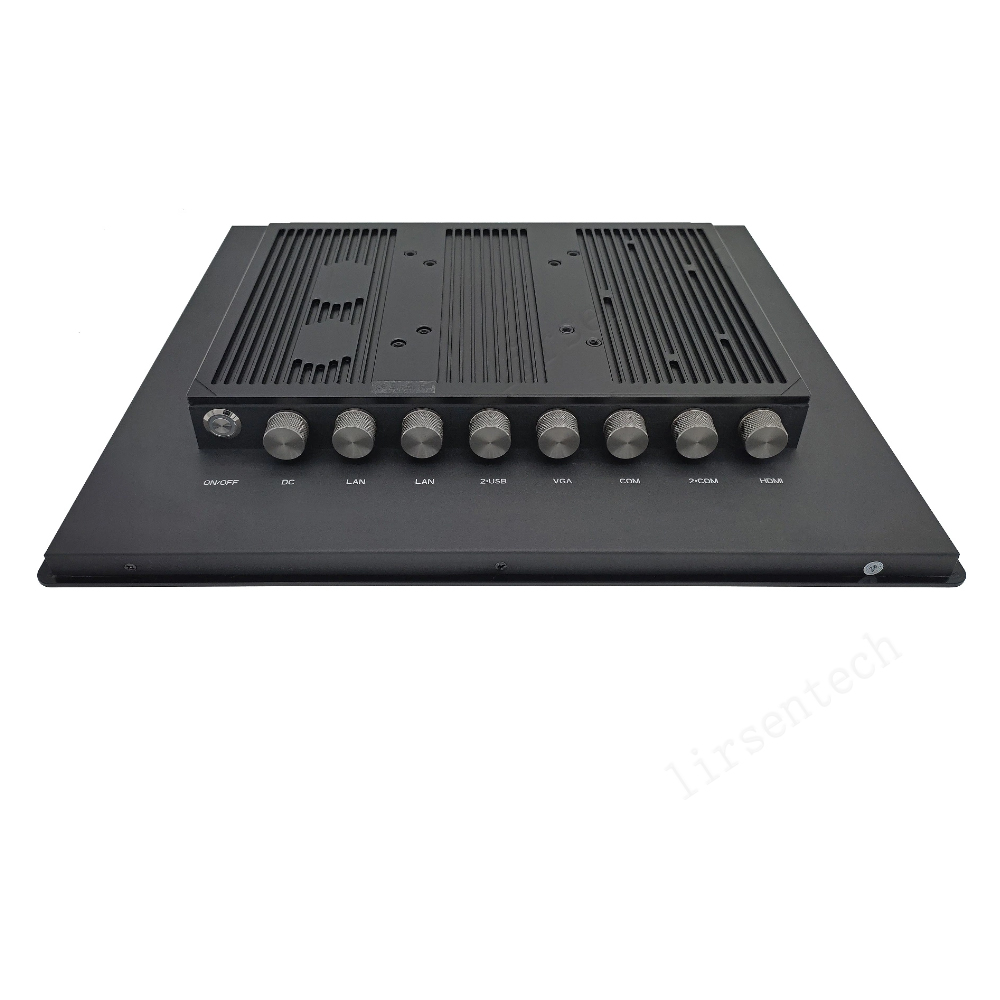

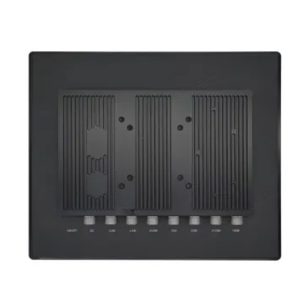

*Plenty of interfaces for free connection of external devices.3*RS232, 2*USB 2.0, 2*LAN, 1*VGA, 1*HDMI, 1*DC IN;
*Operating system:Support MS series win 7, Win 8, WIn10 and Linux operating system.
Parameters:
| Host Parameters | CPU processor | Intel Celeron J1900 2.0GHz Quad-Core Quad-Threading |
| Optional CPU | Core I3-4005U 1.7GHz/I5-4200U 1.6GHz /I7-4500U 1.8GHz Dual-Core | |
| Display card (computer) | Intel HD Graphics | |
| Memory | DDR3 4GB 1066/1333MHz (supports up to 8GB) | |
| Hard drive | 64GB SSD (other capacities available) | |
| Network Port LAN | 2 x 10/100/1000 M bits / RTL8111E on board | |
| Structural parameters | Special Features | Corrosion resistance, high temperature resistance, anti-interference, high stability |
| Structure material | Brushed/sandblasted aluminum-magnesium alloy panel + high-strength steel sheet metal cabinet + aluminum-magnesium alloy heat sink rear panel | |
| Case color | Black (optional silver white) | |
| Design Features | IP65 dustproof and waterproof level, energy-saving silent fanless design, beautiful appearance. | |
| Installation method | VESA stand-mount (e.g. wall/tabletop/stand-up) | |

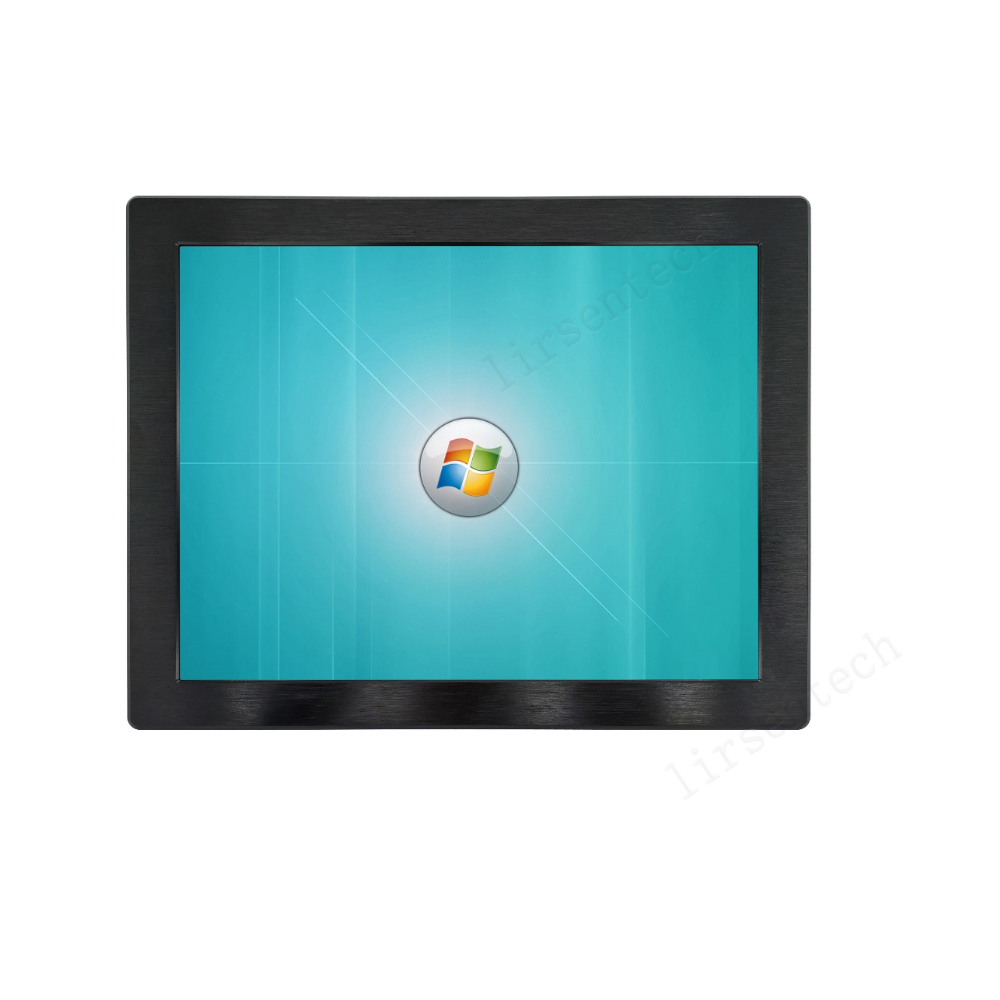

| Display parameters | Feet and inches | 17-inch 4:3 display ratio, industrial-grade screen |
| resolution (of a photo) | 1280*1024 | |
| Brightness | 1000cd/m2 | |
| Other parameters | Contrast ratio: 800:1 (Typ.); Viewing angle: 80/80/60/80 (Typ.) (CR ≥ 10) (left and right up and down) | |
| Touch Parameters | Touch Type | Industrial resistive touch screen (optional multipoint capacitive touch screen) |
| Specifications | Surface hardness >=3H;click life >=5 million times;touch strength <=45g~250g | |
| Interface parameter | I/O interface | 3*RS232,2*USB 2.0,2*LAN,1*VGA,1*HDMI,1*DC IN |
| Environmental parameter | Working temperature | -10ºC~60ºC |
| Storage temperature | -20ºC~70ºC | |
| relative humidity | 10-90%, non-condensable | |
| Size | External dimensions | 400*332*50mm |
| Installation size | 75*75mm/100*100mm (VESA bracket mount) | |
| Power Support | DC power supply | DC 12V power supply input (optional 6-36V wide voltage) |
| Shipment of accessories | Standard | 12V 5A adapter + AC power cord + IP65 rated airplane plug interface wiring + touch pen |
| Operating system | Support MS series Win 7, Win 8, Win 10 and Linux operating systems. | |
| Warranty | 12-month (longer optional) warranty | |
