Product Description
17-inch 1280*1024 High Resolution 1000nits Sunlight Visible Industrial Touchscreen Panel Pc
Introduction:
1)Â Adopt high-performance, low-power MINI-ITX embedded fanless industrial motherboard, onboard Intel Celeron J1900 2.0GHz quad-core four-thread processor (optional upgrade Celeron 3855U/Core I3/I5/I7 series, etc.);
2) Design features: SUS stainless steel/IP67 dustproof and waterproof/fanless design, energy-saving and silent/power-on/power-on/high and low temperature resistance/corrosion resistance/sturdy and durable/full-fit pure plane design, etc.;
3) The whole machine adopts NEMA4/IP67 dustproof and waterproof grade combined with fanless energy-saving and silent design. The casing is made of stainless steel SUS304.

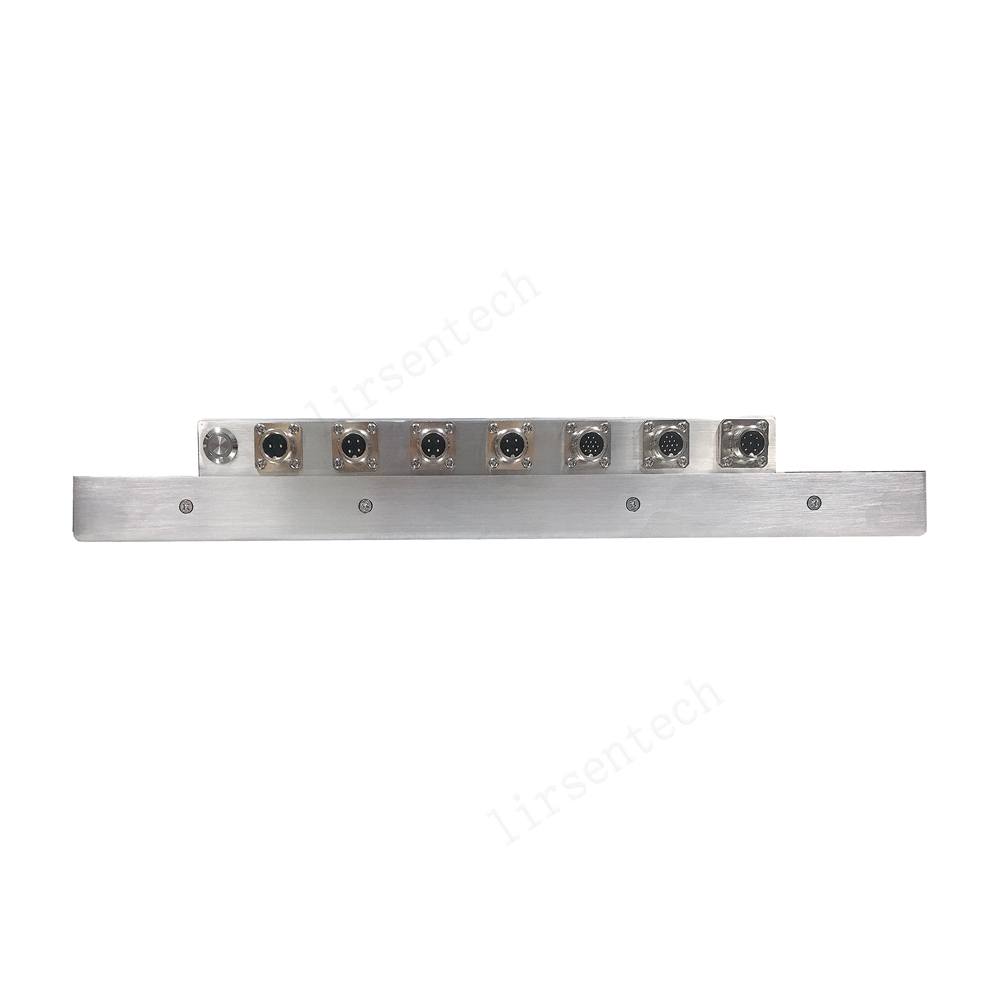

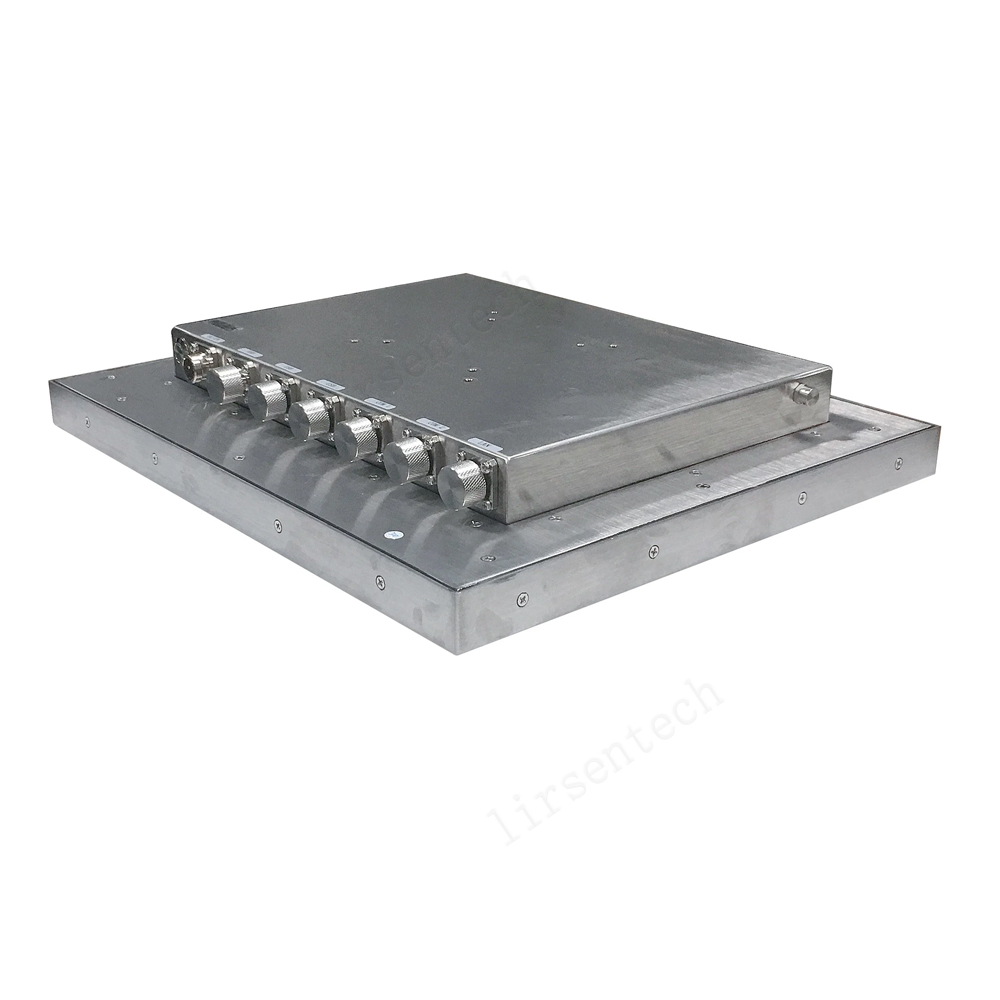

4) All the interfaces adopt aviation plugs that meet the IP67 protection level, making the machine more robust, shock-resistant, pressure-resistant, durable, high-strength, dust-proof, waterproof, and oil-proof. It is also suitable for use in harsh industrial, food, and maritime environments.

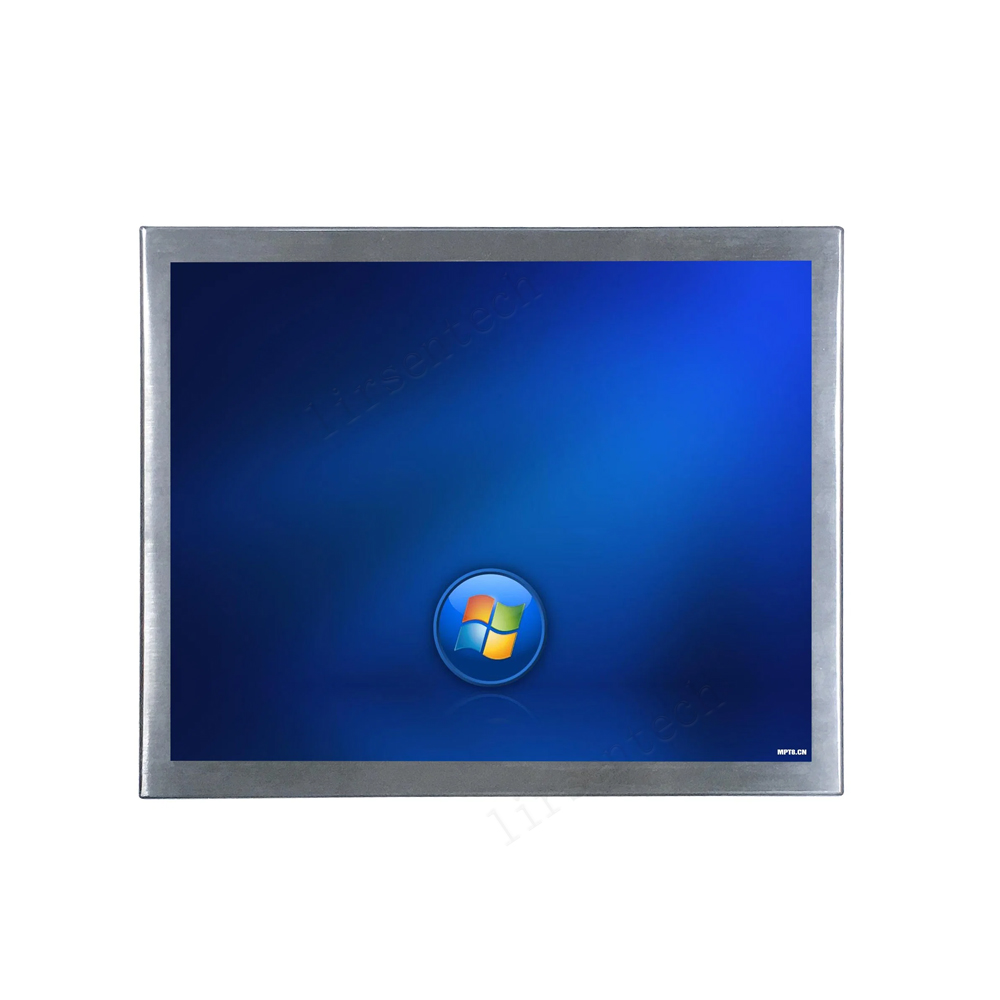

5) 17-inch 4:3 display ratio, 1280*1024 high resolution, 1000cd/m2 high brightness visible in sunlight, A+ perfect industrial LCD display;
6) Adopt Taiwan EETI control scheme, projected capacitive touch screen, support ten-point touch and normal use in environment with water droplets. The operation is more intuitive. It can be used without driving under a variety of systems. The touch accuracy is high and it is not easy to accidentally touch. The material is made of tempered glass to be smoother and harder (optional resistive touch/infrared touch/no touch);
7) The full bonding process is adopted between the display screen and the touch screen to make the display effect more perfect, and it can also avoid the phenomenon of moisture in the air layer between the screen and the screen due to the environmental temperature difference;
8) DC 12V power input (optional DC 24V or DC 9-36V wide voltage input, etc.);
9) Rich IO interfaces, free to connect to external devices, 4*USB, 5*RS232, 2*LAN, 1*DC IN;
10) Operating system: support MS series Win 7/Win8/win10 and Linux and other mainstream operating systems;
11) Installation method: Support standard VESA bracket installation.
Technical specification:
| Host parameters | CPU processor | Intel Celeron J1900 2.0GHz quad-core processor |
| Upgradeable Intel Celeron 3855U/Intel Core I3/I5/I7 series, etc. | ||
| Graphics card | Intel HD Graphics Core Graphics | |
| RAM | DDR3 4G 1333/1600MHz (maximum support 8GB) | |
| hard disk | 32GB SSD (other capacity SSD or HDD optional) | |
| Network port LAN | Onboard 1*Realtek RT8111E Gigabit network card (optional 2 RJ45) | |
| Structural parameters | Special performance | The whole machine is IP67 dustproof and waterproof, corrosion resistant, high temperature resistant, anti-interference, high stability |
| Structure material | The whole machine is made of SUS304 stainless steel | |
| Case color | Stainless steel | |
| Design Features | Rugged, energy-saving, silent, power-on, uninterrupted operation around the clock | |
| Installation method | Support VESA bracket installation (such as wall-mounted, desktop, standing) | |
| Display parameters | Size | 17 inch 4:3 |
| Resolution | 1280*1024 | |
| Brightness | 1000cd/m2 (optional regular 300 cd/m2 brightness) | |
| Other parameters | Contrast ratio: 700:1 (Typ.); Viewing angle: 80/80/70/70 (Typ.) (CR≥10) (left and right up and down) | |
| Touch parameter | Touch type | EETI solution + multi-point capacitive touch screen (optional resistive or no touch screen) |
| Material structure | Material: G+G; Surface hardness: 6H | |
| Other parameters | Touch points: 10 touch points; service life: >=50 million times; transmittance power: >=87% | |
| Interface parameters | I/O interface | 4*USB3.0, 5*RS232, 2*LAN, 1*DC IN |
| Optional interface | WIFI/4G/VGA/HDMI/RS485 (optional) | |
| Environmental parameters | Operating temperature | 0ºC~60ºC (optional -20~+70ºC wide working temperature) |
| storage temperature | -20ºC~70ºC | |
| Relative humidity | 10~90%, no condensation | |
| Dimensions | Physical dimension | 404*340*69mm |
| Installation size | 100*100mm/200*100mm (VESA bracket installation) | |
| Power support | DC power supply | DC 12V power input (optional DC 24V/DC 9-36V, etc.) |
| Shipping accessories | Standard | 12V 5A adapter + AC power cord + corresponding interface IP67 aviation plug wiring |
| Operating system | Support MS series Win 7, Win8, Win10 and Linux operating systems | |
| Warranty | 12 months (longer warranty time optional) warranty | |
Dimension:
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions:
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller’s permit.
FAQ:
Q: whether your industrial panel pc support the OEM / ODM?
A: Â Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: 7″,8″, 10.1″, 10.4″,12″, 13.3″ 15″, 15.6″, 17″ 19″ 21.5″ 22″ 24″ 32″ and wide screen the same zise. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all panel pc and monitor are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee.
