Product Description
Best fanless industrial mini pc computer for intel core i3 7167U 6lan ports firewall Pfsense router mini computer
Product Description:
– Brushed Full Aluminum Alloy Black/Silver color shell, fanless system without cooling fan, no any noise, work as long as 24 hours.
– Intel Celeron J1900, Intel 4th/5th/6th/7th/8th Gen Core i3/i5/i7 CPU for optional.
– 1 x SO-DIMM DDR3L slot max16GB RAM.
-6 x Intel i201/i211 Gigabit RJ45 LANs and 2 x RS232 COM ports.
– Can install MSATA SSD+2.5″ SATA HDD together.
– One embedded SIM card slot onboard for 3G/4G Wi-Fi.
– Low consumption can save much energy and eco-friendly.
– Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.

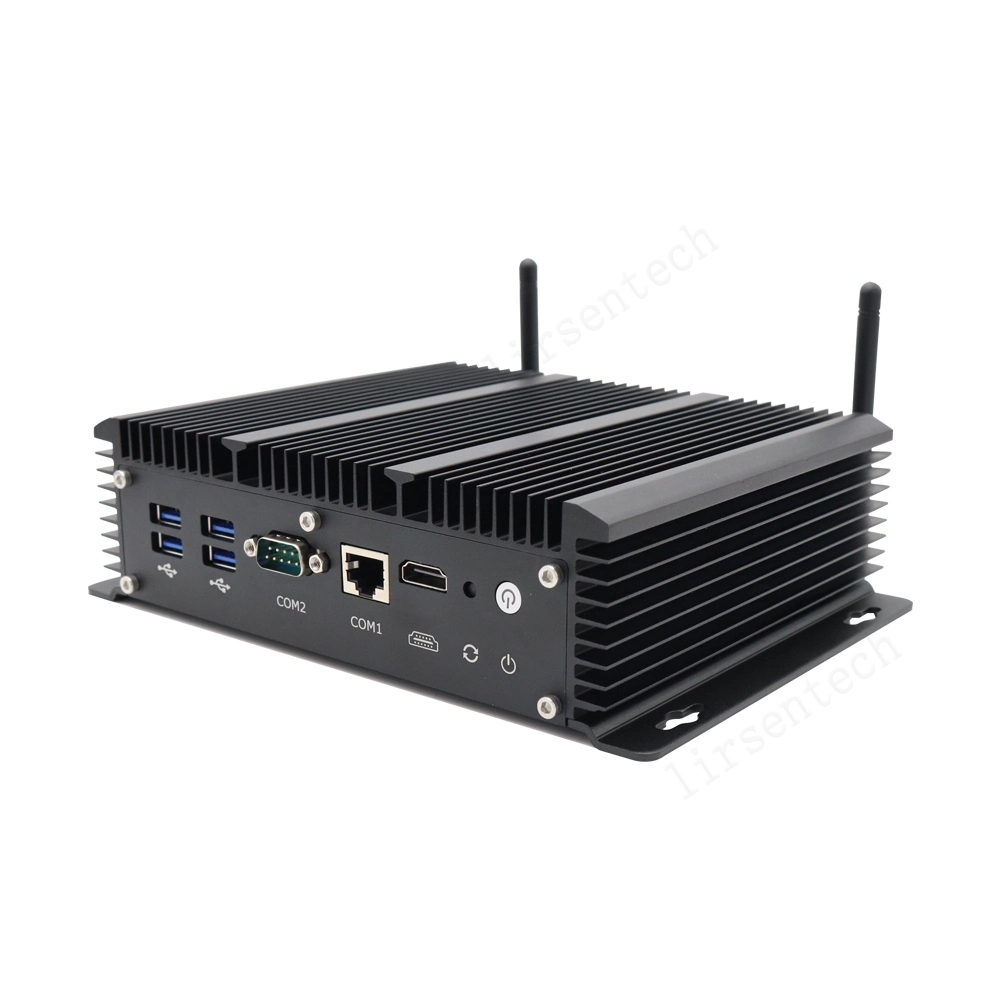

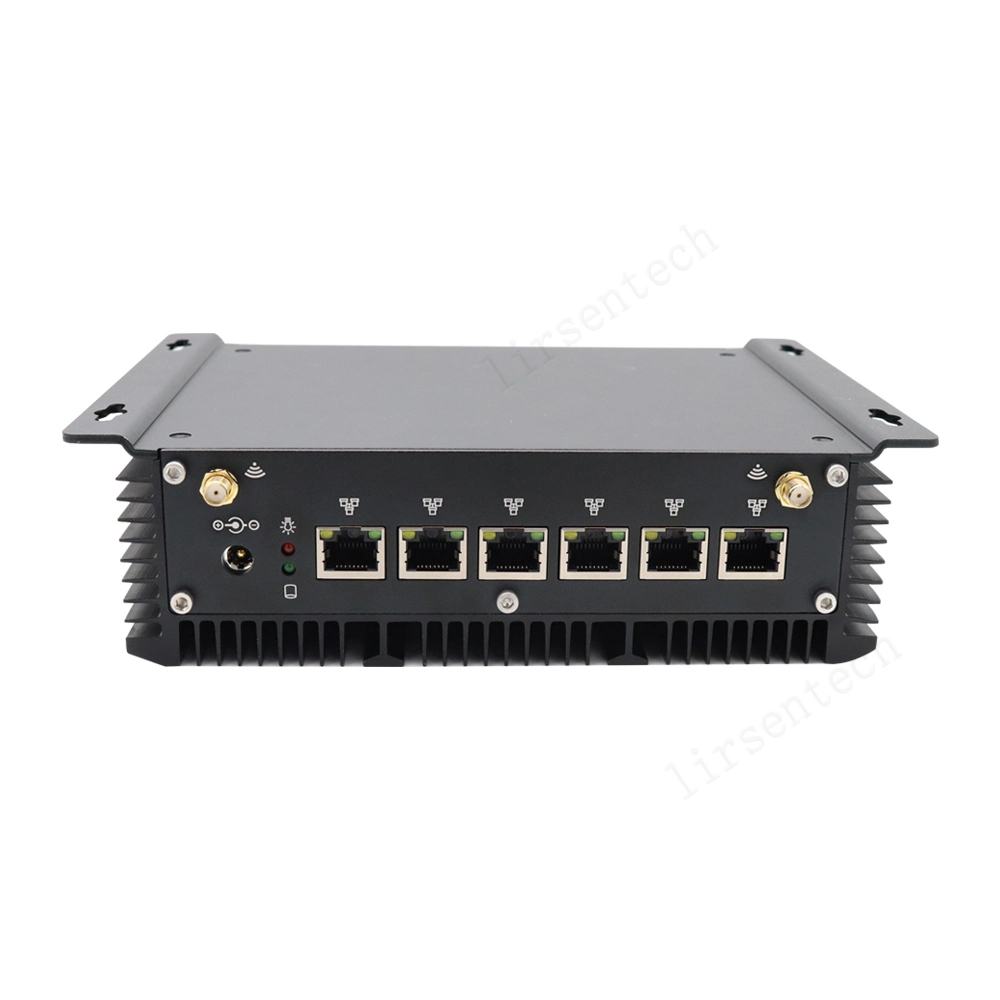

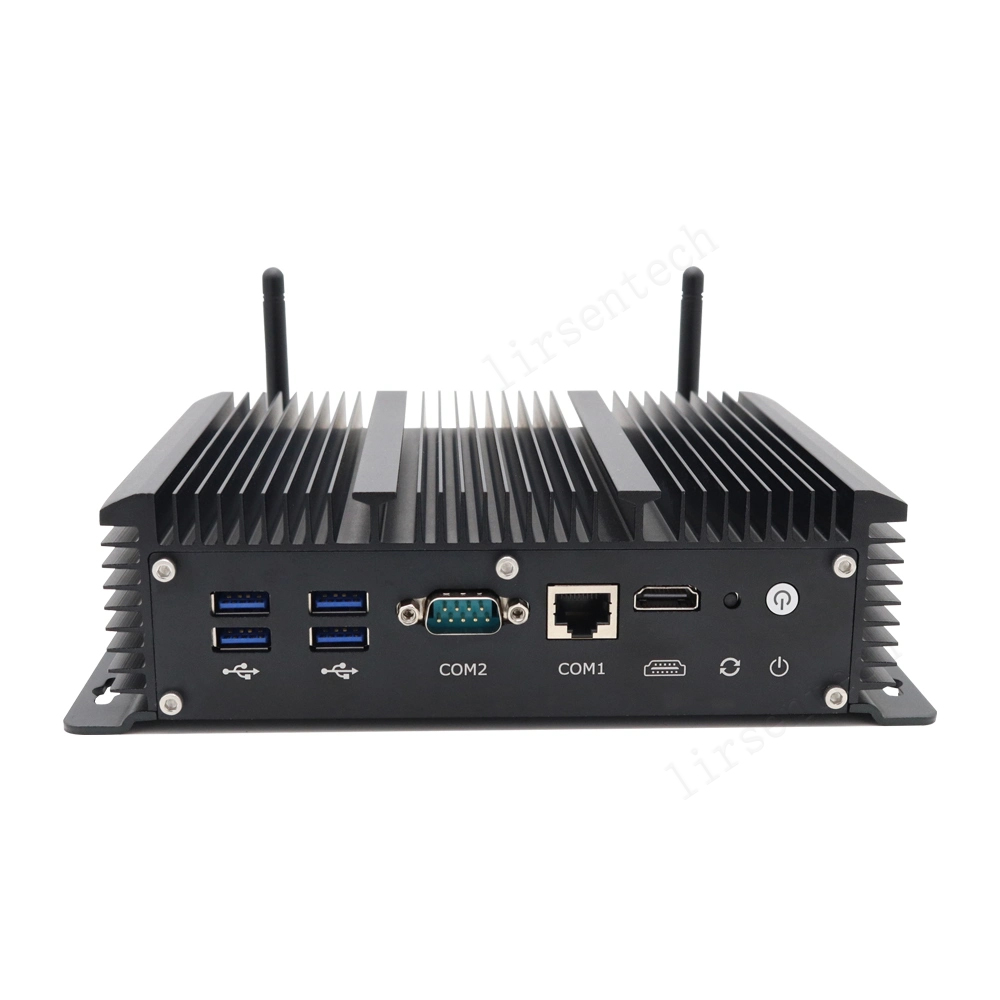

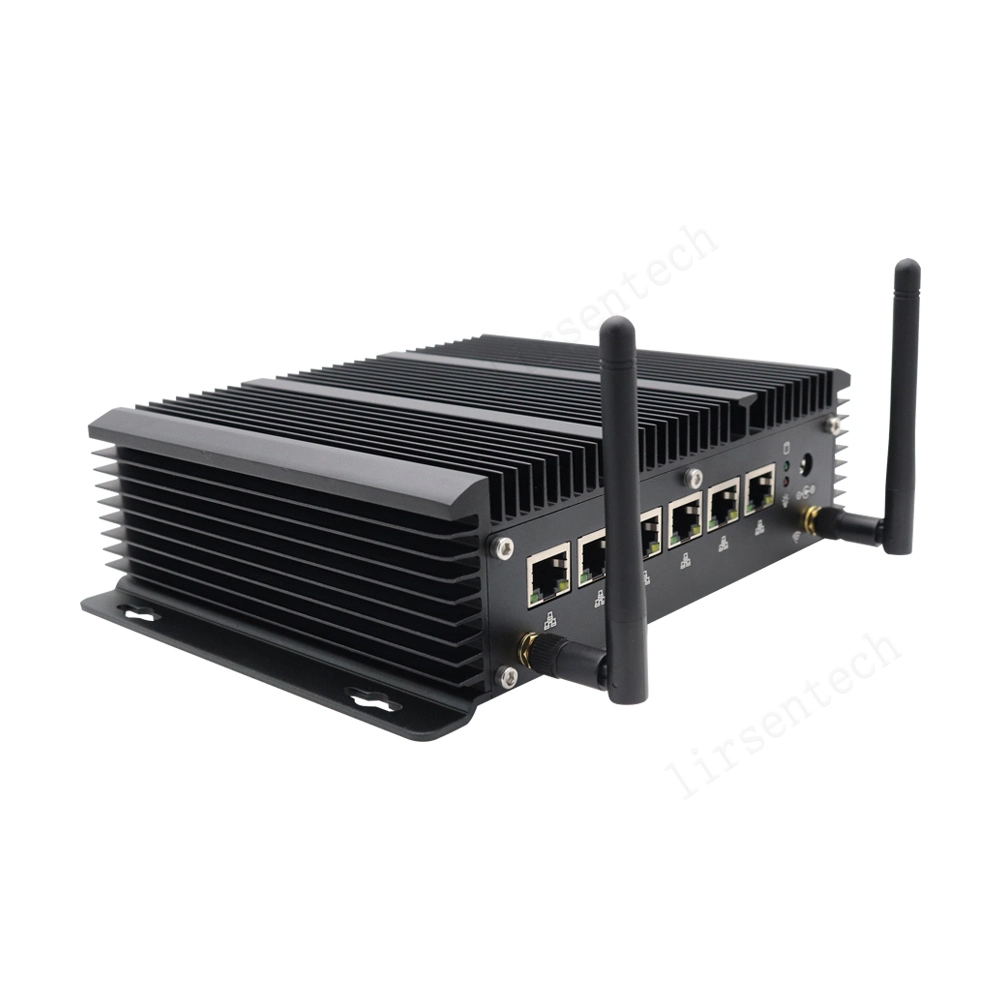

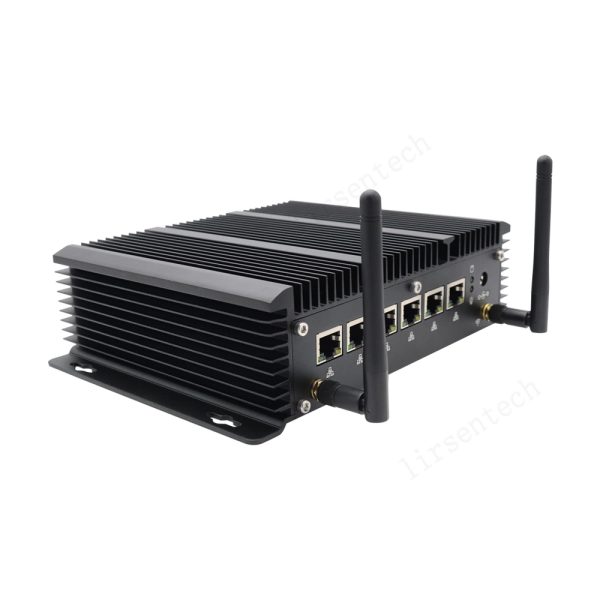

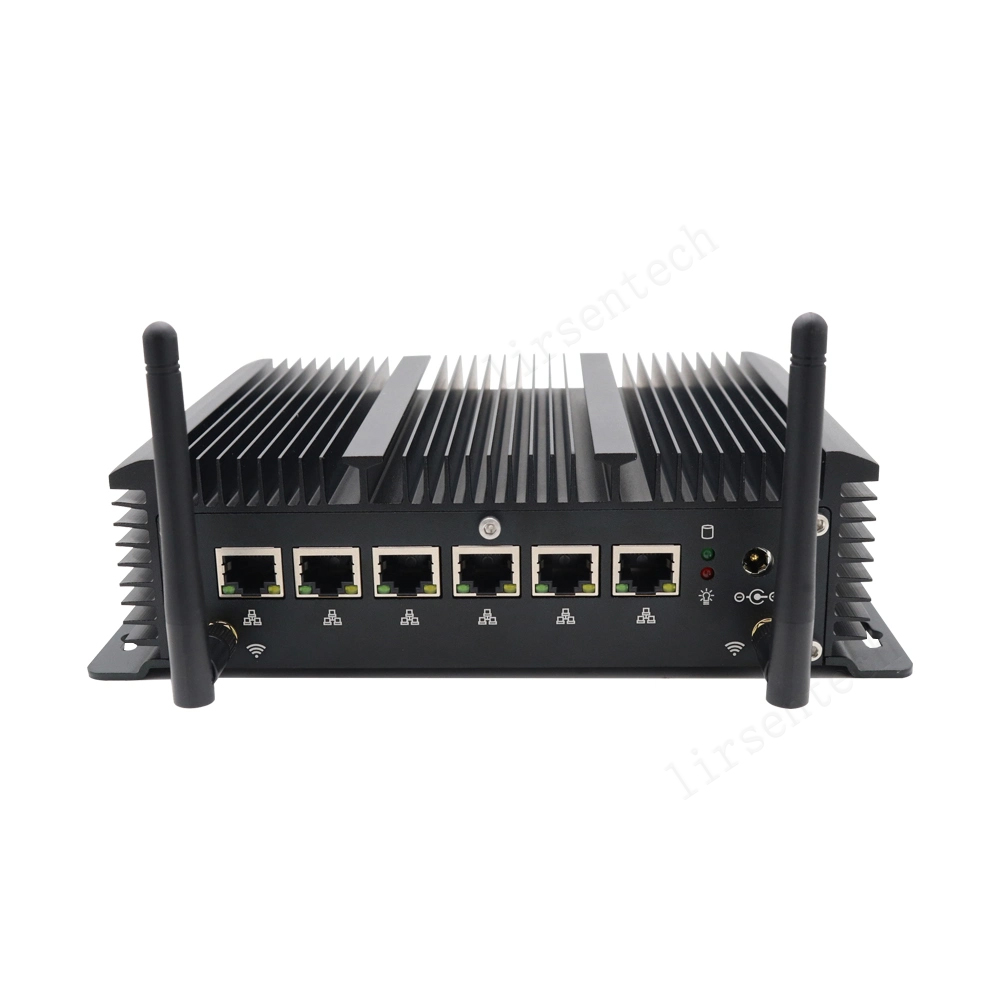

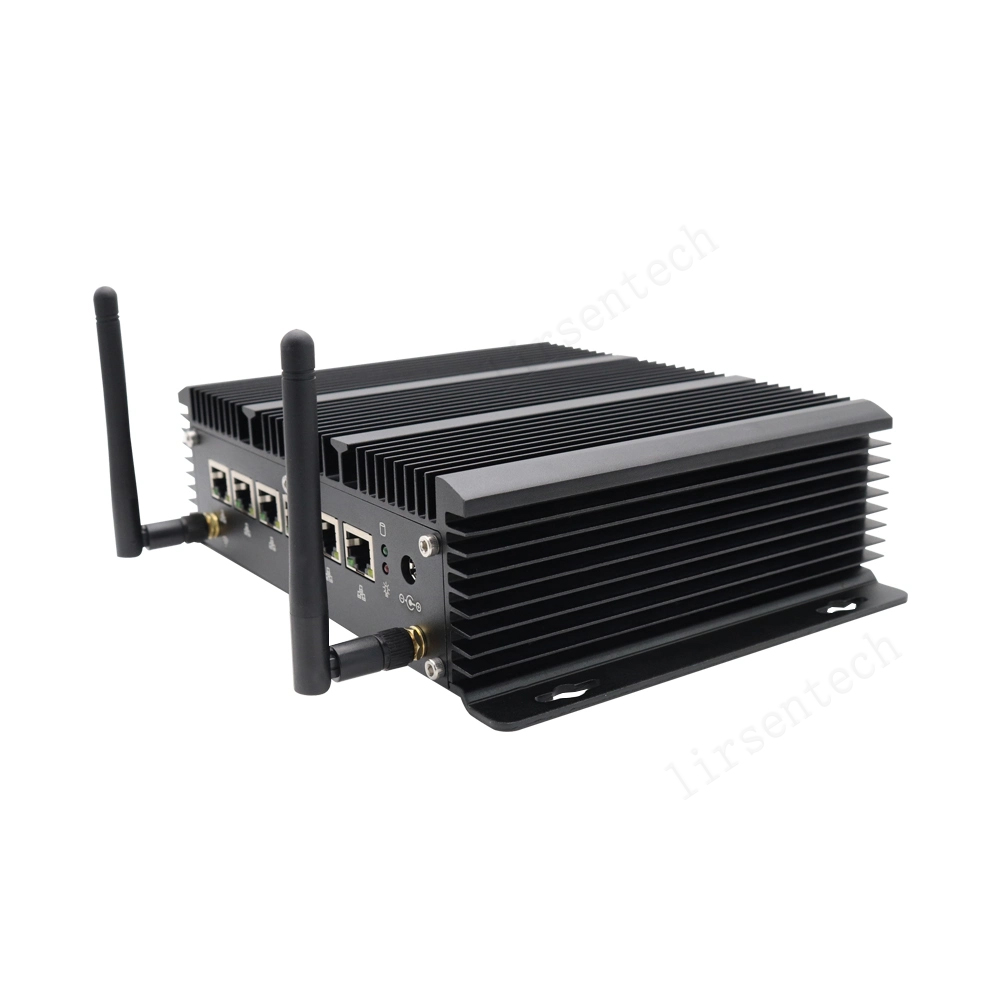

Product show:
Technical specs:
| Description | Fanless industrial mini pc computer intel core i3 7167U 6lan ports firewall Pfense router mini computer |
| Model | G7 |
| Support Function | Watchdog, AWAL, RTC, WOL, PXE, Reset |
| Cpu optional | i5 6360U I7 6567U I5 7267U |
| Basic Information: | |
| CPU | Onboard Intel Core i3-7100U 2.4GHz Dual Core Four Threads( Intel Celeron J1900, Intel 4th/5th/6th/7th/8th Gen Core i3/i5/i7 CPU for optional) |
| TDP | 15W |
| Motherboard | 150 x 150mm customized size |
| BOIS | American Megatrends Inc.5.12 |
| Chipset | Intel Sunrise Point-LP, Intel Kaby Lake-U |
| Memory | 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB/16GB DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
| OS | Window 7/8/10, WES 7/10, LINUX |
| PXE | YES |
| Audio | Intel Kaby Lake HD-MI @ Intel Sunrise Point-LP PCH – High Definition Audio Controller |
| Network | Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel® HD Graphics 620 |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 4 x USB3.0 |
| Display | 1 x HD-MI |
| LAN | 6 x RJ45 Giga LAN |
| COM | 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM |
| SIM | 1 x embedded SIM card slot onboard |
| Audio | 1 x MIC, 1 x SPK |
| Others | 1 x Reset button |
| Storage | |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol) |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | -20/+60 Centigrade |
| Storage Temperature | -30/+70 Centigrade |
| Relative Humidity | 10%~90%@30 Centigrade(non-condensing) |
| Product Dimension & Details | |
| Size | 209*150*57mm |
| Weight | Net 1.35kg, Gross 2.5kg |
| Shell | Black/Silver color aluminum alloy(any customized color for bulk order) |
| Mounting | 4 mounting holes on case |
| Cooling Mode | Fanless |
